| ?聚氯乙烯絕緣電線（環保） |

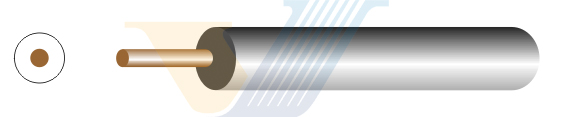

?Polyvinyl Chloride Insulated Wire. |
| ?名稱：UL1007 |
?STYLE ：UL1007 |
| ?UL檔案號：E****** |
?UL LEADER FILE NO：E****** |
| ?CSA檔案號: ****** |
?CSA MASTER CONTRACT:****** |
| ?■產品說明： |
?■ PRODUCT DESCRIPTION |
| ?●額定溫度：80℃ |
?●Rated temperature：80℃ |
| ?●額定電壓：300V |
?●Rated voltage：300V |
| ?●參考標準：UL758,UL1581,CSA C22.2 |
?●Reference standard：UL758,UL1581,CSA C22.2 |
| ?●導體使用單支或絞合32-16AWG鍍錫或裸銅 |
?●Solid or stranded ,tinned or bare copper conductor 32-16AWG |
| ?●PVC絕緣，符合ROHS環保標準 |
?●PVC insulation ,comply with ROHS environmental standard |
| ?●通過UL VW-1及CSA FT1阻燃測試 |
?●Passes UL VW-1 and CSA FT1 flame test |
| ?●絕緣厚度均勻、易裁線、易剝皮 |
?●Uniform insulation thickness to ensure easy stripping and cutting |
| ?●用于一般電子、電器設備內部連接線 |
?●For general purpose internal wiring of appliance |
